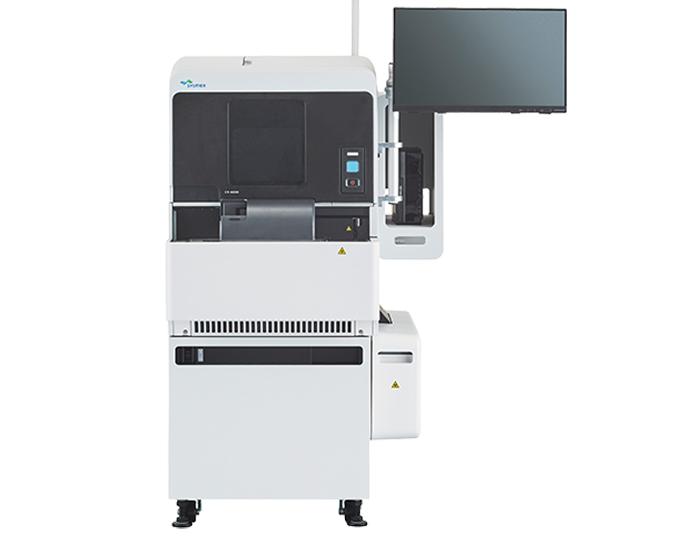

The Sysmex CN analyser series condenses the high power of productivity, analytics, operations, and service into a small footprint to meet your haemostasis testing needs!
Powerful productivity: Ultra-high throughput, processing a maximum of 450 tests* per hour. A single system that offers both routine and specialty assays, including platelet aggregation and DOAC assays. Flexibility to connect a maximum of three Sysmex CN analysers to Sysmex haemostasis island transportation system which handle up to 1,000 tubes/h.
Operational power: Provide an estimate of the number of reagent vials required to allow a laboratory to run their planned daily routine without interruption using reagent consumption statistical tool. Automatic onboard dilution of platelet aggregation agonists. Direct connection to water purification system, if required.
Analytical power: Proven multi-wavelength detection technology combined with long-life LED light source to increase accuracy and reliability in testing through wavelength switching and preanalytical HIL (haemolysis, icterus, lipaemia) check. Automatic switching of detection sensitivity for accurate analysis of lipaemic samples. Assess comprehensive coagulation functions through clot waveform analysis.
Powerful services: Interactive guide onboard to lead operators easily through the required actions and countermeasures if troubleshooting becomes necessary. Self-diagnostic checks which monitor the instrument status, allow real time diagnosis of instrument problems, and prevent sudden downtime.
Assays:
- PT: Dade Innovin, Thromborel S
- APTT: Dade Actin, Dade Actin FS, Dade Actin FSL, Pathromtin SL
- Fibrinogen: Dade Thrombin, Dade Fibrinogen Determination Reagent
- Thrombin Time: Test Thrombin, Thromboclotin
- Batroxobin Time: Batroxobin
- Factor Deficiency: Factor II, V, VII, VIII, IX, X, XI, XII
- Lupus Anticoagulant: LA1 Screen, LA2 Confirmation
- Protein C Pathway: ProC Global, Protein C Reagent, Berichrom Protein C, Protein S Ac, Innovance Free Protein S Antigen
- Antithrombin: Innovance Antithrombin, Berichrom Antithrombin III (A)
- D-Dimer: Innovance D-Dimer
- Von Willebrand Factor: vWF Ag, Innovance vWF Ac, BC von Willebrand
- Chromogenic: Factor VIII Chromogenic, Biophen FVIII Chromogenic*, Biophen FIX Chromogenic*, Berichrom Factor XIII Chromogenic, Berichrom C-1 Inhibitor, Berichrom α2-Antiplasmin, Berichrom Plasminogen
- Heparin: Berichrom Heparin LRT
- Direct Thrombin Inhibitors: Hemoclot Thrombin Inhibitors**, BIOPHEN DTI**
- Direct Factor Xa Inhibitors: Biophen Heparin LRT, BiophenDiXal**
- Platelet Aggregation: Revohem ADP, Revohem Collagen, Revohem Epinephrine, Revohem Arachidonic Acid, RevohemRistocetin
Detection principles:
- Multi-wavelength detector for transmitted light at 340, 405, 575, 660 and 800 nm
- Multi-wavelength detector for transmitted light at 340, 405, 575, 660 and 800 nm
Detection channel/method:
- 26 channels for clotting, chromogenic and immunoassays (8 of these channels are also be used for platelet aggregation assays)
- 13 channels for clotting, chromogenic and immunoassays (4 of these channels are also be used for platelet aggregation assays)
Parameters:
- Up to 60 parameters can be analysed simultaneously
- Up to 60 parameters can be analysed simultaneously
Throughput:
- PT: 450 tests/hour
- PT/APTT: 401 tests/hour
- PT: 225 tests/hour
- PT/APTT: 215 tests/hour
Sampling:
- Continuous loading of maximum 5 racks of 6 tubes each with standard sampler or 20 racks of 6 tubes each with optional sampler, cap-piercing functionality
- 1 dedicated, cap-piercing, STAT positionDirect sampling via left side of the analyser when connected to an optional Sysmex haemostasis island transportation system or other laboratory automation track system
- Continuous loading of maximum 5 racks of 6 tubes each with standard sampler or 20 racks of 6 tubes each with optional sampler, cap-piercing functionality
- 1 dedicated, cap-piercing, STAT positionDirect sampling via left side of the analyser when connected to an optional Sysmex haemostasis island transportation system or other laboratory automation track system
Reagent holder:
- 38 tilted reagent vial positions (10°C), 15 of these reagent positions tilted angle can be adjusted by lever (0° or 8°), 7 with mixing function
- 6 positions (room temperature)
- All positions with positive reagent identification
- 38 tilted reagent vial positions (10°C), 15 of these reagent positions tilted angle can be adjusted by lever (0° or 8°), 7 with mixing function
- 6 positions (room temperature)
- All positions with positive reagent identification
Reference curves:
- Maximum 10 reference curves per lot
- Maximum 10 lots per parameter
- Maximum 250 parameters
- Maximum 10 reference curves per lot
- Maximum 10 lots per parameter
- Maximum 250 parameters
Quality control:
- X-bar control, Levy-Jennings control
- Multi-rule (Westgard Rule) monitoring
- 40 files with maximum 1,200 data points each
- X-bar control, Levy-Jennings control
- Multi-rule (Westgard Rule) monitoring
- 40 files with maximum 1,200 data points each
Data storage:
- Up to 10,000 sample results with reaction curves
- Up to 10,000 sample results with reaction curves
Printer:
- List or Graphic Printer (optional)
- List or Graphic Printer (optional)
Dimensions (WxHxD)/weights:
- 720 × 1,350 × 906 mm (with trash box), 230 kg (approximate)
- 1060 x 1,350 x 1,030 mm (with optional sampler/wagon and trash box), 330 kg (approximate)
- 720 × 1,350 × 906 mm (with trash box), 230 kg (approximate)
- 1060 x 1,350 x 1,030 mm (with optional sampler/wagon and trash box), 330 kg (approximate)
